Hi

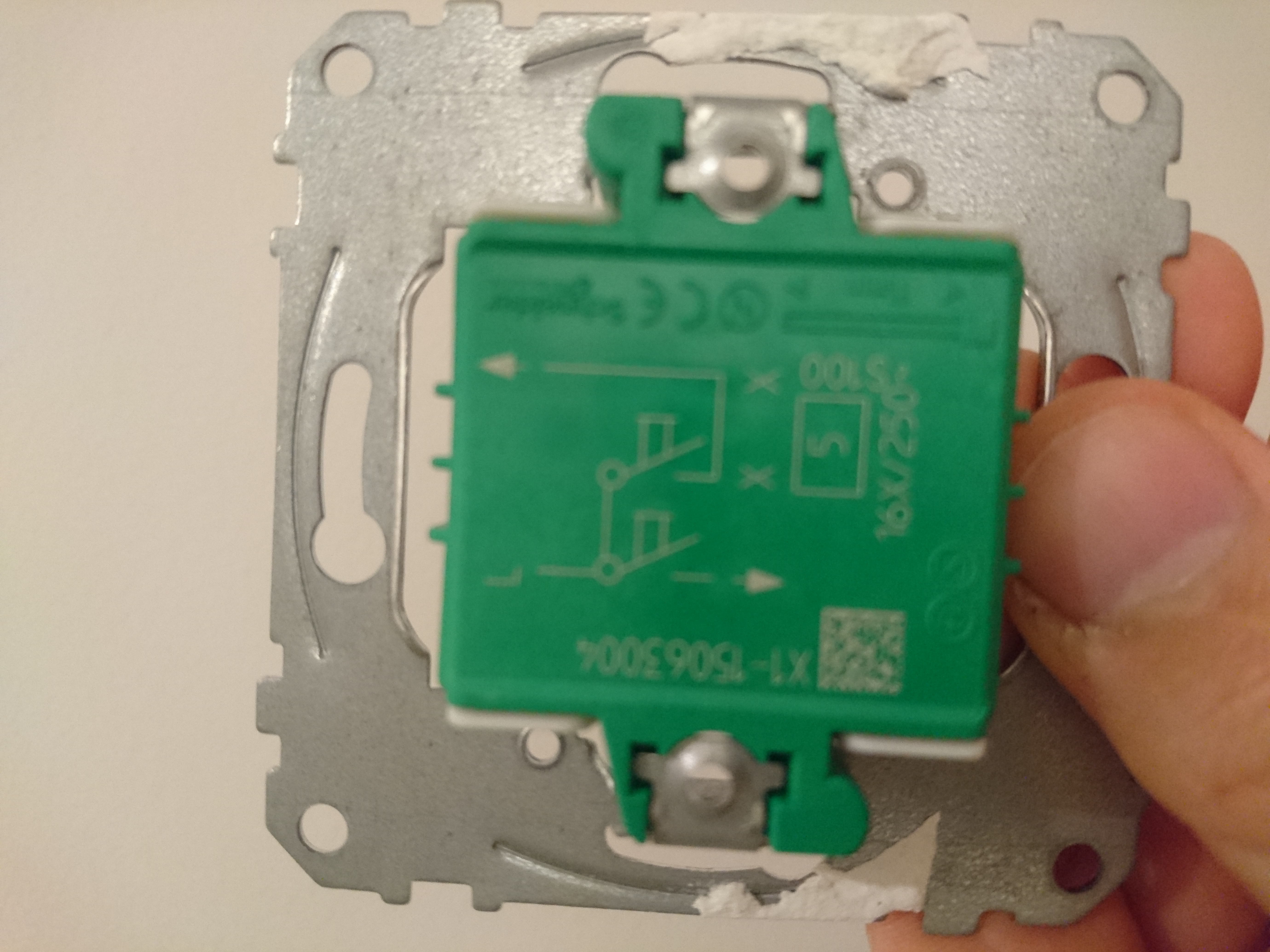

I am going to change the normal switch to a dimmer in the first picture. I opened the current switch I faced 4 wires.

2 Brown (on goes down, one up) connected to L of current switch
1 grey and 1 black connected to current switch both go up.

How should I connect them to the dimmer? The dimmer has one diagonal arrow, two L and one X holes.



[hempularen]

Your picture is a bit blurred if I try to study it in detail.

But I suspect that you have a so called "trappkoppling", it means that you can control your lamp from two or more places?

In that case you need a dimmer that also has that function, the one you have does not support it.



[Uffe A]

If You have another switch that turns on the same lamp (I Think that it's so)
Then connect the Brown conductors to the symbol ~ and the Black to one of the L and the Grey to the Other L.
That dimmer doesn't support LED



[AlfaBravo]

Hi Uffe
We moved to this apartment recently. As you said I found another switch behind a door that is usually open. Thanks for your help and quick reply.



[hempularen]

Uffe is right, I just realized that the dimmer DOES support "trappkoppling". My mistake.



[AlfaBravo]

If You have another switch that turns on the same lamp (I Think that it's so)
Then connect the Brown conductors to the symbol ~ and the Black to one of the L and the Grey to the Other L.
That dimmer doesn't support LED

Thanks. It works.



[AlfaBravo]

Hi
One more switch! Appreciate your help.
I am going to change a dual switch for two lamps. I have 2 browns, one black and one Gray. Dimmer switch has two ~, one L and two 1. Please help with matching.



[AlfaBravo]

Thanks. It works.

Hi
One more switch! Appreciate your help.
I am going to change a dual switch for two lamps. I have 2 browns, one black and one Gray. Dimmer switch has two ~, one L and two 1. Please help with matching.



[Bo.Siltberg]

How was the old switch connected? That will identity the phase conductor and the two conductors to the lamps. Then it is simple to connect the dimmer accordingly, phase to L and the lamps to ~.



[AlfaBravo]

How was the old switch connected? That will identity the phase conductor and the two conductors to the lamps. Then it is simple to connect the dimmer accordingly, phase to L and the lamps to ~.

Two brown lines to L. Black to upper arrow and gray to lower arrow.



[Bo.Siltberg]

Then you know, the two browns together to L and the other two to each of ~.



[AlfaBravo]

I did it and both lumps was blinking for a while I keep my fingers on both keys and all of the sudden they stabilised ( I guess dimmer reset). It works now.

BR Amin



[AlfaBravo]

Then you know, the two browns together to L and the other two to each of ~.

Hi again
I turned both lamp off and then on again and they are blinking!! Do you know what can be the issue?



[Bo.Siltberg]

There is a mismatch between dimmer and lamps, that is, the dimmer cannot handle the type of lamps you are using. You will typically run into trouble with LED lamps and fluorescent lamps. Despite that the dimmer is of a universal type, they can seldom adjust themselves correctly for these kind of lamps. It could also be that the load is too low. Since this dimmer has no connection for neutral, it takes the power it needs itself through the lamp. To rule out errors with the dimmer, please try with a tungsten lamp.



[AlfaBravo]

You are right. Bauhaus staff recommended this dimmer to me although I asked for an LED dimmer. Do you know any dual dimmer switch from SCHNEIDER?
